Advanced

This page allows you to specify the field mapping used during import from Active Directory or LDAP

   Field mapping

Map field

You can configure Hexamail Vault to remap imported fields to user fields. This can be used for example to set the external POP/IMAP account download settings, or change the contact settings from their default mappings. In Exchange it is possible to add 15 custom attributes to an active directory mailbox, and these should be referred to using extensionAttribute1, extensionAttribute2 ... extensionattribute15 In Hexamail the following fields are used by the system and can be mapped to if required.

					phone			- Phone number for user
					office			- Office address
					mobile			- Mobile/Cellular number
					title			- Job Title
					dept			- Department
					company			- Company Name
					other			- Other field
					sigcustom		- Enable custom signature (on/off)
					sigcustomtext	- Custom sugnature text
					sigcustomhtml	- Custom sugnature html
					p3denableui		- Enable external account collection web interface (on/off)
					p3denable		- Enable external account collection (on/off)
					p3dexpiretime	- Expire email in external account (days)
					p3dname			- External account login username
					p3dpassword		- External account login password
					p3dserver		- External account server hostname or IP
					p3dssl			- External account ssl (on/off)
					p3dport			- External account port number
					p3dprot			- External account protocol (POP3/IMAP)
					p3daction		- External account action (Keep,Expire,Delete)
					p3dschedule		- External account schedule (minutes)
					p3dfolders		- External account IMAP folders to download
					fwd				- HEXAMAIL SERVER ONLY Enable forwarding for mailboxes (on/off)
					fwddeliver		- HEXAMAIL SERVER ONLY Also deliver forwarded mail to mailbox (on/off)
					fwdaddr			- HEXAMAIL SERVER ONLY SMTP email Address to forward to
					mboxquota		- HEXAMAIL SERVER ONLY Mailbox quota in megabytes


Other custom fields can be added just by mapping to a new unreserved name.

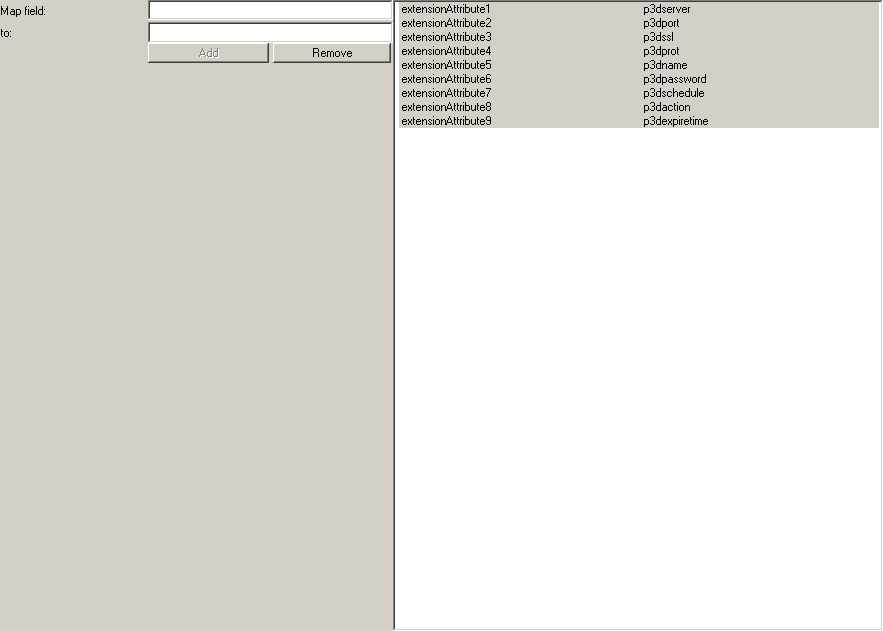

Example interface:

Example:extensionAttribute1:p3dserver extensionAttribute2:p3dport extensionAttribute3:userp3dname extensionAttribute4:userp3dpassword extensionAttribute5:p3dschedule extensionAttribute6:p3dexpiretime extensionAttribute7:anyfieldyouwant extensionAttribute8:anotherfield cn:CNInExchange

   Storage

Cache size

User store cache size in MBytes

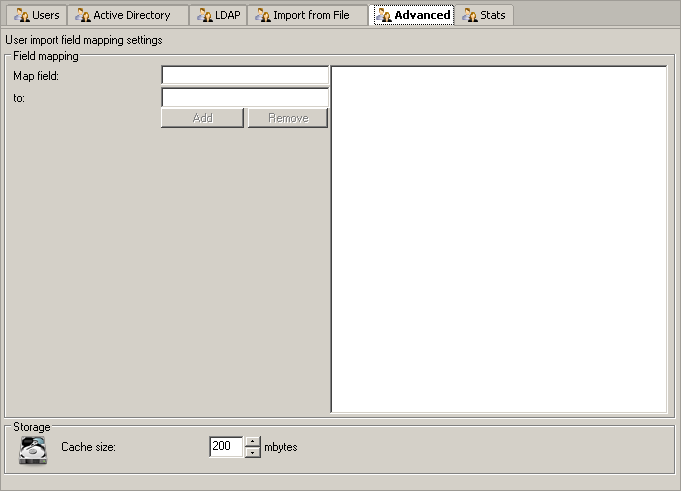

Example interface:

Default:200 mbytes
