Network

The Developer REST module allows applications to connect to email or calendar or SPAM using a REST integration

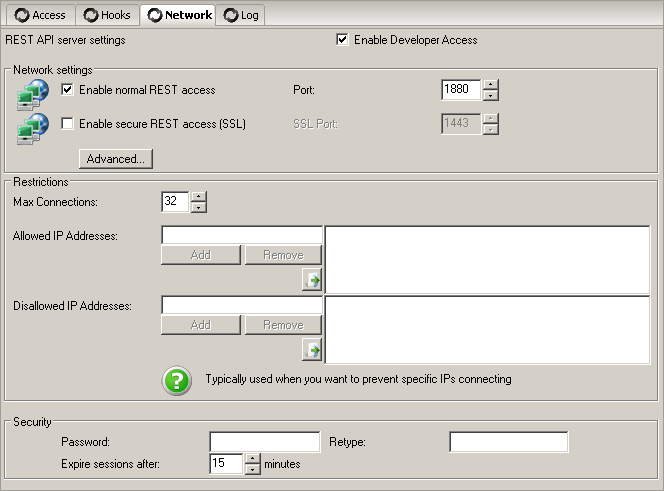

   Network settings

PortEnable

You can optionally enable this protocol

Example interface:

Options:On/Off

Default:true

Port

the port you wish the server to bind to. If you are using Hexamail Nexus as your main email server for your company email, you will typically want to leave this on the default setting of 80

Example interface:

Default:1880

Example:80

SSLPortEnable

You can optionally enable this protocol over a secure channel using SSL. If you do not specify a certificate name using the SSLCertificate configuration parameter in the config file (.cfg) one will be created automatically for you. However, as this is an auto-created certificate it will not be signed by a certification authority and may cause warnings in the clients used to connect to this server. If the users of the clients accept the warnings, then SSL can be used immediately. If you do not wish users to see these warnings you need to obtain and install a valid, signed, SSL certificate for your server from a provider such as Thawte, or Verisign. You must then specify the certificate name in the SSLCertificate parameter of the configuration file.

Example interface:

Options:On/Off

Default:false

SSL Port

The port to use for SSL communications

Example interface:

Range80 - 32000

Default:1443

Example:443

Advanced...

Press the Advanced button to open the advanced bindings/NIC settings.

   Restrictions

Max Connections

Example interface:

Range1 - 256

Default:32

Example:32

Connect Cache

The total amount of RAM to use for caching during communications. A larger value will consume more of the machine's RAM but result in faster communications.

Example interface:

Range2 - 64 MBytes

Default:4 MBytes

Example:16 MBytes

Timeout

If no data at all is received from a remote server within this time the connection is dropped

Default:240

Example:60

Allowed IP Addresses

Example interface:

Importing data

Press the import button, also shown as >> when the interface is small, to import data into the list.The following file types are supported:

        CSV (Comma delimited) (*.csv)
        Text (Tab delimited) (*.txt)
        All Files (*.*)

The data should be separated by commas, tab characters or newlines.
Each data entry must match the validation wildcard '*@*.*'. Entries that do not match will be discarded.
Duplicate entries are not imported more than once.

Disallowed IP Addresses

Example interface:

Importing data

Press the import button, also shown as >> when the interface is small, to import data into the list.The following file types are supported:

        CSV (Comma delimited) (*.csv)
        Text (Tab delimited) (*.txt)
        All Files (*.*)

The data should be separated by commas, tab characters or newlines.
Each data entry must match the validation wildcard '*@*.*'. Entries that do not match will be discarded.
Duplicate entries are not imported more than once.

   Security

Password

The password is used to ensure that only the authorized administrator of the Hexamail service can use the REST interface to configure Hexamail Nexus.

Example interface:

Expire sessions after

Expiry time for sessions with no activity

Example interface:

Range1 - 9000 minutes

Default:15 minutes
